How To Install and Use KVM on CentOS Stream 8

4 min readOct 17, 2022

In today’s guide we will be installing KVM on CentOS Stream 8 Linux operating system. KVM (Kernel-based Virtual Machine) is an open source virtualization technology built into Linux Kernel. KVM can be used on any x86 hardware with virtualization extensions (Intel VT or AMD-V). The role of KVM as hypervisor is specification of the host resources — Memory, CPUs, and virtual devices availed to the virtual machine instances being defined.

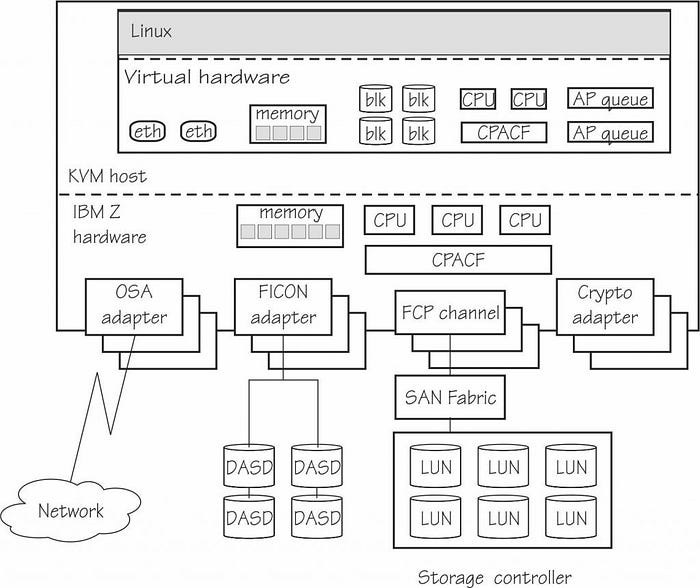

KVM consists of a loadable kernel module, kvm.ko, that provides the core virtualization infrastructure and a processor specific module, kvm-intel.ko or kvm-amd.ko. Below diagram illustrates how the KVM hypervisor virtualizes the compute resources for Linux on KVM.

credits: IBM

Step 1: Confirm Virtualization extensions availability

Your hardware needs to have CPU virtualization extensions; Intel VT for Intel or AMD-V for AMD processor. In some systems, this is disabled on BIOS and you may need to enable it.

$ cat /proc/cpuinfo | egrep --color "vmx|svm"

The lscpu command can also be used to check for virtualization CPU extensions:

$ lscpu | grep Virtualization

Virtualization: VT-x

This confirms I have Intel processor and VT-x extension

Step 2: Install KVM Virtualization Tools on CentOS Stream 8

Let’s start by performing system upgrades to use Kernel updates that could be available.

sudo dnf -y update

If there are Kernel related updates consider performing system reboot then install KVM Virtualization Tools on CentOS Stream 8:

sudo dnf install @virt

Accept installation by pressing the y key:

Transaction Summary


Install 166 Packages

Total download size: 99 M

Installed size: 352 M

Is this ok [y/N]: y

Check if Kernel modules are loaded:

$ lsmod | grep kvm

kvm_intel 315392 0

kvm 847872 1 kvm_intel

irqbypass 16384 1 kvm

Step 3: Install other KVM Management Tools

Let’s perform installation of other tools that helps with the management of Virtual Machines on KVM:

sudo dnf -y install bridge-utils virt-top libvirt-devel libguestfs-tools

We have an example guide showing how libguestfs-tools can be used: How to mount VM virtual disk on KVM hypervisor

Step 4: Start and enable KVM daemon

By default, KVM daemon libvirtd is not started, start the service using the command:

sudo systemctl start libvirtd

Also enable the service to be started at system boot:

sudo systemctl enable libvirtd

Check if service is started successfully:

$ systemctl status libvirtd

● libvirtd.service - Virtualization daemon

Loaded: loaded (/usr/lib/systemd/system/libvirtd.service; enabled; vendor preset: enabled)

Active: active (running) since Mon 2021-06-21 20:29:16 CEST; 59s ago

Docs: man:libvirtd(8)

Main PID: 23126 (libvirtd)

Tasks: 19 (limit: 32768)

Memory: 15.3M

CGroup: /system.slice/libvirtd.service

├─23126 /usr/sbin/libvirtd --timeout 120

├─23251 /usr/sbin/dnsmasq --conf-file=/var/lib/libvirt/dnsmasq/default.conf --leasefile-ro --dhcp-script=/usr/libexec/libvirt_leaseshelper

└─23252 /usr/sbin/dnsmasq --conf-file=/var/lib/libvirt/dnsmasq/default.conf --leasefile-ro --dhcp-script=/usr/libexec/libvirt_leaseshelper

Jun 21 20:29:17 kvm-desktop dnsmasq[23251]: reading /etc/resolv.conf

Jun 21 20:29:17 kvm-desktop dnsmasq[23251]: using nameserver

Jun 21 20:29:17 kvm-desktop dnsmasq[23251]: using nameserver

Jun 21 20:29:17 kvm-desktop dnsmasq[23251]: using nameserver

Jun 21 20:29:17 kvm-desktop dnsmasq[23251]: using nameserver 2a01:4f8:0:1::add:9898#53

Jun 21 20:29:17 kvm-desktop dnsmasq[23251]: using nameserver 2a01:4f8:0:1::add:1010#53

Jun 21 20:29:17 kvm-desktop dnsmasq[23251]: using nameserver 2a01:4f8:0:1::add:9999#53

Jun 21 20:29:17 kvm-desktop dnsmasq[23251]: read /etc/hosts - 9 addresses

Jun 21 20:29:17 kvm-desktop dnsmasq[23251]: read /var/lib/libvirt/dnsmasq/default.addnhosts - 0 addresses

Jun 21 20:29:17 kvm-desktop dnsmasq-dhcp[23251]: read /var/lib/libvirt/dnsmasq/default.hostsfile

Step 5: Install Virtual machine Manager GUI — Optional

If running a Desktop Environment on your CentOS Stream 8, you can install the virt-manager package which provides Desktop Management application for your KVM Virtual Machines.

sudo dnf install virt-manager

Begin installation of Virt-manager on CentOS Stream 8:

Installing weak dependencies:

abattis-cantarell-fonts noarch 0.0.25-6.el8 appstream 156 k

dejavu-sans-mono-fonts noarch 2.35-7.el8 baseos 447 k

Transaction Summary


Install 62 Packages

Total download size: 27 M

Installed size: 83 M

Is this ok [y/N]: y

Step 6: Network Bridge Creation for KVM instances (Optional)

The Linux bridge virbr0 is created at the time of installation and can be used to create Virtual Machines that doesn’t need external IP connectivity. It uses NAT to give VMs internet access.

$ brctl show

bridge name bridge id STP enabled interfaces

virbr0 8000.525400876bb5 yes virbr0-nic

If you need a bridge with external connections support, refer to the guide below on creation:

How to Create a Linux Network Bridge on RHEL / CentOS 8

Step 7: Create Virtual Machines on KVM

You can use virt-install command to create a Linux Virtual Machine on KVM.

I’ll download CentOS Stream 8 DVD installation ISO file

cd ~/


VM installation using virt-install:

virt-install \

--name centos-stream-8 \

--ram 2048 \

--vcpus 2 \

--disk path=/var/lib/libvirt/images/centos-stream-8.img,size=20 \

--os-variant centos-stream8 \

--os-type linux \

--network bridge=virbr0 \

--graphics none \

--console pty,target_type=serial \

--location ~/CentOS-Stream-8-x86_64-latest-dvd1.iso \

--extra-args 'console=ttyS0,115200n8 serial'

The installation is on text mode but the procedure of installation is similar to GUI. After finishing the installation, reboot the instance and login

CentOS Stream 8

Kernel 4.18.0-240.el8.x86_64 on an x86_64

Activate the web console with: systemctl enable --now cockpit.socket

localhost login:

You can also login through console:

$ virsh console centos-stream-8

Press key on getting:

Escape character is ^]
